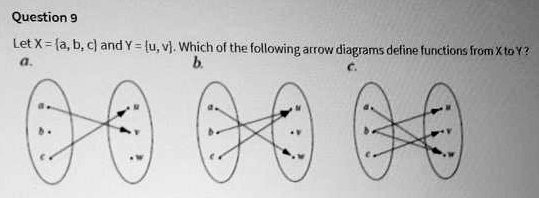

let x = a b c and y = u v . which of the following arrow diagrams define functions from x to y

[Mozz]



[Dr.Peterson]

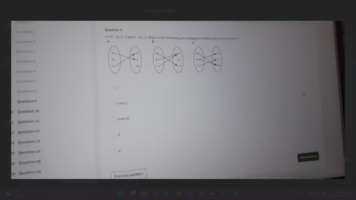

View attachment 35094

Let's make it a little more readable:



Please tell us your own thoughts about this, so we can see where you need help:

Posting Guidelines (Summary)

Welcome to our tutoring boards! :) This page summarizes the main points from our posting guidelines. As our name implies, we provide math help (primarily to students with homework). We do not generally post immediate answers or step-by-step solutions. We don't do your homework. We prefer to...

www.freemathhelp.com

If you need a lesson on the subject, try this:

What is a Function



[stapel]

What are your thoughts? What have you tried? How far have you gotten? Where are you stuck?

Please be complete. Thank you!

Eliz.



[pka]

View attachment 35094

Do you understand the cross product of two sets is? That is [imath]X\times Y=\{(a,u),(a,v),(b,u).(b,v).(c,u).(c,v)\}[/imath]
The formal definition of a function [imath]f:X\to Y[/imath] is:
1) [imath]f\subseteq X\times Y[/imath]
2) Every element in [imath]X[/imath] is the first term of some pair in [imath]f[/imath]
3) No two terms of [imath]f[/imath] have the same first term.
Using those three requirements see which picture matches all three.
There is only one answer.

BTW: This is a faulty question because it should be [imath]Y=\{u,v,w\}[/imath]
