Equipment reliability formula question ("A piece of equipment that produces widgets runs for 1000 hours....")

MontyJ

New member
Joined
Oct 6, 2023
Messages
1
Hello all,
I do not know if this is the correct place for this, so please excuse me if it's not.
Here is my problem. It concerns the reliability of a certain piece of machinery. The reliability formula is:

Rt=e^(-xt)

Where R is reliability
t is time
x is failure rate (it should be lambda, but I don't know how to produce a lambda on the keyboard)
e is the base of the natural logarithm (2.71828)
So R(time) = 2.71828^-(lambda x time)

A piece of equipment that produces widgets runs for 1000 hours. During that 1000 hours it breaks down 10 times.

This gives the equipment a MTBF (mean time between failure) of 100 hours.

The failure rate is the inverse of the MTBF or .01

If I want to calculate reliability for 20 hours I get:

R(20) = 2.71828^-(.01 x 20) so R(20) = .8187 or 81.87%

R(100) = 2.71828^-(.01 x 100) so R(100) = .3679 or 36.79%

This makes perfect sense in that the longer it runs, the less reliable it becomes.

However, and here is my problem, if I do the calculation for the original 1000 hours, I get:

R(1000) = 2.71828^-(.01 x 1000) so R(1000) = 4.54 or 454%

I'm screwing this decimal up somewhere but high school math was over 40 years ago. Can someone please explain what I'm doing wrong here?

Thanks for your time.

However, and here is my problem, if I do the calculation for the original 1000 hours, I get:

R(1000) = 2.71828^-(.01 x 1000) so R(1000) = 4.54 or 454%

I'm screwing this decimal up somewhere but high school math was over 40 years ago. Can someone please explain what I'm doing wrong here?

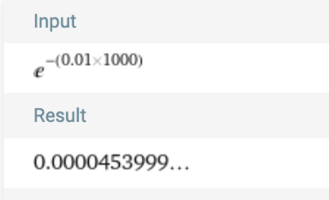

I suspect your calculator gave an answer like

4.5399929762484851535591515560551e-5

and you either didn't see the "e-5", or didn't know that it means "[imath]\times10^{-5}[/imath]".

It's easier to type out e compared to 2.71828, so why do you use 2.71828 instead of e--they are even equal to one another!

It's easier to type out e compared to 2.71828, so why do you use 2.71828 instead of e--they are even equal to one another!
No they aren't. I thought you were a stickler for not saying two things are equal when one is an approximation of the other!

But I suspect the OP is not aware there's an e (or e^x) button on the calculator. That's not uncommon.

Darn, another typo! I'm sure that you knew I meant to write they are not even equal to one another!
