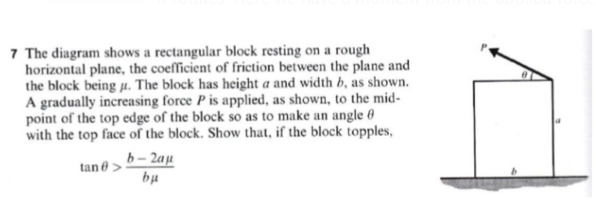

Toppling problem

apple2357

Full Member
Joined
Mar 9, 2018
Messages
486

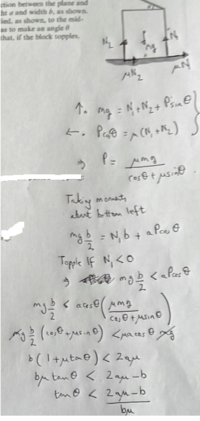

I cant get this one to work... can someone spot where my reasoning has gone wrong?


blamocur

Senior Member
Joined
Oct 30, 2021
Messages
1,510
I agree that the moment is incorrect. I believe we can assume that [imath]N_1=0[/imath]. Indeed, in the case when [imath]P[/imath] is gradually increased and eventually topples the block we'll pass through the moment when the right bottom edge is lifted of the surface by infinitely small amount so that the geometry is essentially the same, but there is no longer any weight applied to the right bottom edge.
Does this make sense?


apple2357

Full Member
Joined
Mar 9, 2018
Messages
486
Yes thats what i essentially did by allowing N_1<0
I think the moment equation is wrong because i omitted a component of P.


blamocur

Senior Member
Joined
Oct 30, 2021
Messages
1,510
Yes thats what i essentially did by allowing N_1<0
I think the moment equation is wrong because i omitted a component of P.
Why would [imath]N_1[/imath] be non-zero if there is no contact at that point?
