Can anyone answer this GCSE cubic graph question?? (Draw suitable straight line to estimate sol'n to cubic)

Nirwanda

New member
Here is a question from Edexcel GCSE Maths mock exam Jan 2024:

On the grid draw the graph of y=x^3-3x+2

By drawing a suitable straight line on the grid, use your graph to find an estimate for the solution of

2x^3-3x+4=0

I rearranged equation 2 to give equation 1 on the left hand side, as follows:
x^3-3x+2=-x^3-2

I was expecting this to give a linear equation on the right hand side not a cubic

So plotting the graphs of y=x^3-3x+2 and y=-x^3-2 should give a solution to equation 2

And it does. These two graphs intersect at x=-1.6 which is roughly the solution to equation 2.

But y=-x^3-2 is not a straight line.

Any ideas what straight line they are after??

It’s GCSE so shouldn’t be too complex

Thanks

Could you please post a photo of the question on the mock paper?

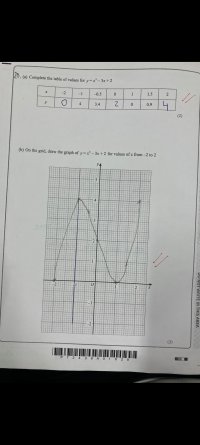

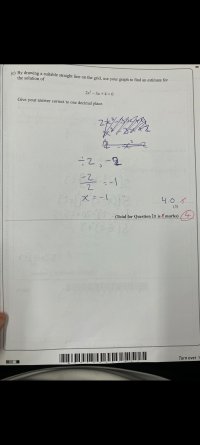

Here is the original question

Attachments

• Screenshot_20240205_114734_Gallery.jpg
1.1 MB · Views: 18
• Screenshot_20240205_114749_Gallery.jpg
1,003.4 KB · Views: 18
I rearranged equation 2 to give equation 1 on the left hand side, as follows:
x^3-3x+2=-x^3-2

I was expecting this to give a linear equation on the right hand side not a cubic
Yes, you are expected to get a linear function, so you need to do something that will cancel out the cubic term. Perhaps you need to divide the equation to be solved by 2 first?

Boy do I feel like an idiot

Yes of course that's it

So the straight line is y=-3x/2

Which gives intersect at x=-1.6

Thanks so much for your help Dr P

Spent ages looking at that. Couldn't see the wood for the trees

Boy do I feel like an idiot
I cannot help thinking that these are the moments when you make the most progress in your learning.

Yes indeed. For some reason I thought the 2x^3 term was written in stone and unchangeable
