Help with Fourier Series

PA3040D

Junior Member
Joined
Jan 30, 2021
Messages
97
Dear Expert,

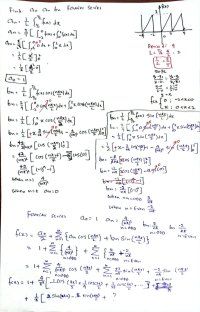

Please check the attached Fourier series solution. Kindly advise if there are any mistakes or steps I have done incorrectly. I would also appreciate your suggestions on how to minimize the time taken to solve it. and what steps that I have done over
Please accept my apologies if the handwriting in the image is not clear enough.


Attachments

  • WhatsApp Image 2025-04-23 at 10.04.34.jpeg
    WhatsApp Image 2025-04-23 at 10.04.34.jpeg
    116.1 KB · Views: 9
  • CamScanner 04-23-2025 10.12.pdf
    427.6 KB · Views: 3
Dear Expert,
Please check the attached Fourier series solution. Kindly advise if there are any mistakes or steps I have done incorrectly. I would also appreciate your suggestions on how to minimize the time taken to solve it. and what steps that I have done over
Please accept my apologies if the handwriting in the image is not clear enough.
The graph is not periodic but you wrote it has a period of \(\displaystyle 4\). Are you sure that this is the correct graph?

Of course, yes—that was my mistake during the drawing. However, the solution has been corrected by referring to the original question.

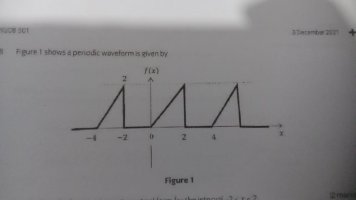

Please take a look at the original question that I have attached.


Attachments

  • WhatsApp Image 2025-04-23 at 19.42.29.jpeg
    WhatsApp Image 2025-04-23 at 19.42.29.jpeg
    53.7 KB · Views: 3
Most of your work is correct. You just need to organize your calculations.

You write \(\displaystyle a_n\) when you actually are calculating \(\displaystyle a_0\). You write \(\displaystyle b_n\) when you are calculating \(\displaystyle a_n\) and in the same time you write \(\displaystyle b_n\) when you are calculating \(\displaystyle b_n\).

You calculated \(\displaystyle a_n\) as \(\displaystyle +\frac{4}{n^2\pi^2}\) when it should be \(\displaystyle -\frac{4}{n^2\pi^2}\) for \(\displaystyle n=1,3,5,\cdots\)

You say \(\displaystyle a_0 = 1\) which is correct. You write:

\(\displaystyle f(x) = \frac{a_0}{2} + \cdots \rightarrow\) correct, then you write:

\(\displaystyle f(x) = 1 + \cdots \rightarrow\) wrong.

You should write: \(\displaystyle f(x) = \frac{1}{2} + \cdots\)

Now you know the values of \(\displaystyle a_0, a_n,\) and \(\displaystyle b_n\). Write the general form as:

\(\displaystyle f(x) = \frac{a_0}{2} + \sum_{n=1}^{\infty}a_n\cos\frac{n\pi x}{2} + b_n\sin \frac{n\pi x}{2}\)

Since \(\displaystyle a_n\) takes only odd indices, you can change any \(\displaystyle n\) there to \(\displaystyle 2n-1\). Now replace the coefficients with their values.

\(\displaystyle f(x) = \frac{1}{2} + \sum_{n=1}^{\infty}-\frac{4}{(2n-1)^2\pi^2}\cos\frac{(2n-1)\pi x}{2} + (-1)^n\frac{2}{n\pi}\sin \frac{n\pi x}{2}\)

Now the second term will keep track of the odd indices while the third term will keep track of both odd and even as \(\displaystyle b_n\) takes both.

Most of your work is correct. You just need to organize your calculations.

You write \(\displaystyle a_n\) when you actually are calculating \(\displaystyle a_0\). You write \(\displaystyle b_n\) when you are calculating \(\displaystyle a_n\) and in the same time you write \(\displaystyle b_n\) when you are calculating \(\displaystyle b_n\).

You calculated \(\displaystyle a_n\) as \(\displaystyle +\frac{4}{n^2\pi^2}\) when it should be \(\displaystyle -\frac{4}{n^2\pi^2}\) for \(\displaystyle n=1,3,5,\cdots\)

You say \(\displaystyle a_0 = 1\) which is correct. You write:

\(\displaystyle f(x) = \frac{a_0}{2} + \cdots \rightarrow\) correct, then you write:

\(\displaystyle f(x) = 1 + \cdots \rightarrow\) wrong.

You should write: \(\displaystyle f(x) = \frac{1}{2} + \cdots\)

Now you know the values of \(\displaystyle a_0, a_n,\) and \(\displaystyle b_n\). Write the general form as:

\(\displaystyle f(x) = \frac{a_0}{2} + \sum_{n=1}^{\infty}a_n\cos\frac{n\pi x}{2} + b_n\sin \frac{n\pi x}{2}\)

Since \(\displaystyle a_n\) takes only odd indices, you can change any \(\displaystyle n\) there to \(\displaystyle 2n-1\). Now replace the coefficients with their values.

\(\displaystyle f(x) = \frac{1}{2} + \sum_{n=1}^{\infty}-\frac{4}{(2n-1)^2\pi^2}\cos\frac{(2n-1)\pi x}{2} + (-1)^n\frac{2}{n\pi}\sin \frac{n\pi x}{2}\)

Now the second term will keep track of the odd indices while the third term will keep track of both odd and even as \(\displaystyle b_n\) takes both.
Great thanks sir for help and advice
